Model 2000 Series | Air Purifer-TRUE HEPA

Rs.39,000.00

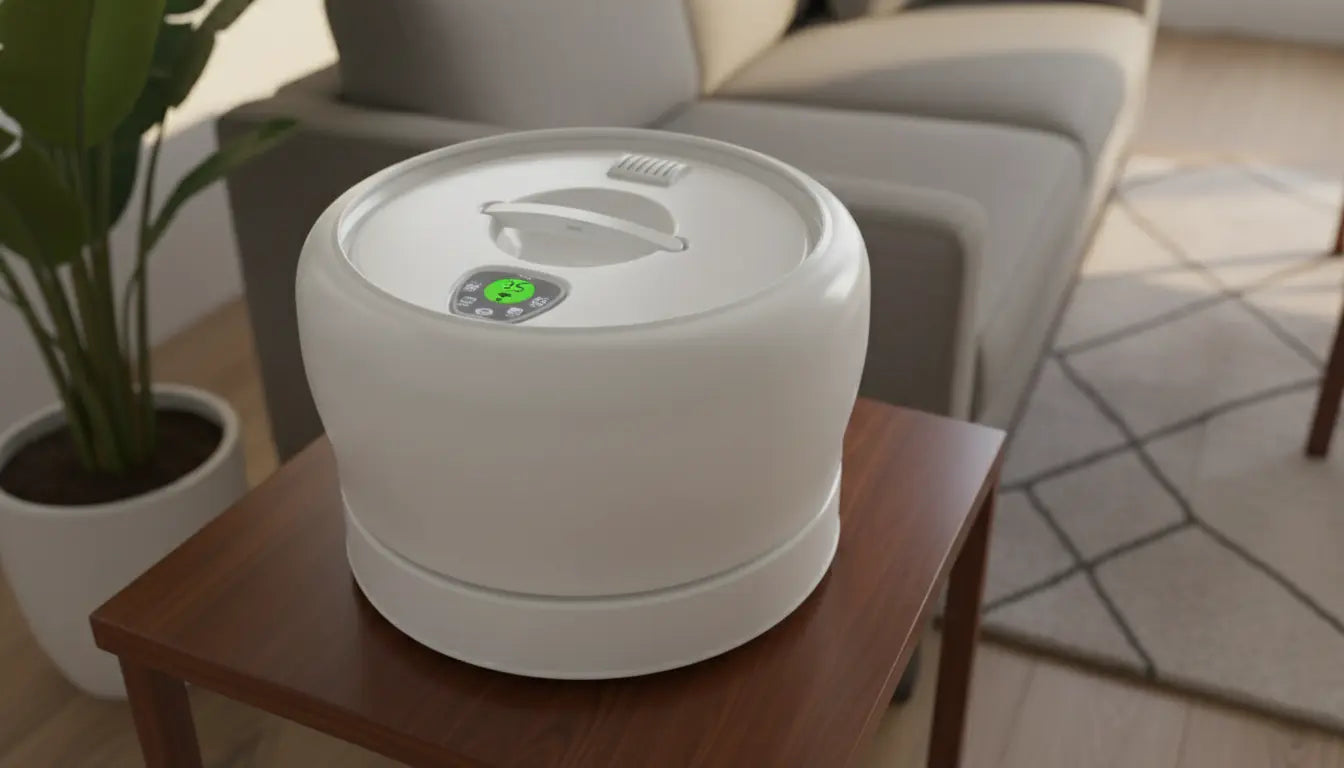

The Dax Smart Air Purifier is constructed from durable, high-quality ABS plastic. Super quiet operation is guaranteed due to a low-velocity blower fan. The HEPA filter has a 2-inch pleat, known as a deep pleat, for low pressure drop, increasing the CADR. The LCD screen provides a clear air quality color code and particle count along with functions. The laser air dust sensor offers the highest accuracy available for air purifiers, with long life for accurate auto functionality.

Air Purifier Specifications

MODEL

Series 2000

NET WEIGHT

8.25kg

DIMENSIONS

Height: 11.75"
Diameter: 17.5"

ENERGY CONSUMPTION

Low = 78.8w (0.63kWh/8h)
Medium = 83.6w (0.67kWh/8h)
High = 85.8w (0.69kWh/8h)

VOLTAGE

220–240~ V (AC)

FREQUENCY

50–60Hz

SOUND

Low = 40 dB
Medium = 49 dB
High = 56.5 dB

AIR VELOCITY

8.9 m/s (High setting)

CADR

333 Cubic Meter/Hr

HEPA FILTER

0.3 microns (μm) H12/13 filter with 99.97% Accuracy
Area: 528sft
2" Deep Pleated True Hepa

CARBON FILTER

0.5" Thickness
Type: Polyester Heat Impregnated Active Carbon Filter

LASER SENSOR

Luftmy LD15

Air Intake Grill:

Located at the inside of the upper rim, it pulls in ambient air for the filtering
process. Do not block this area to maintain optimal airflow.

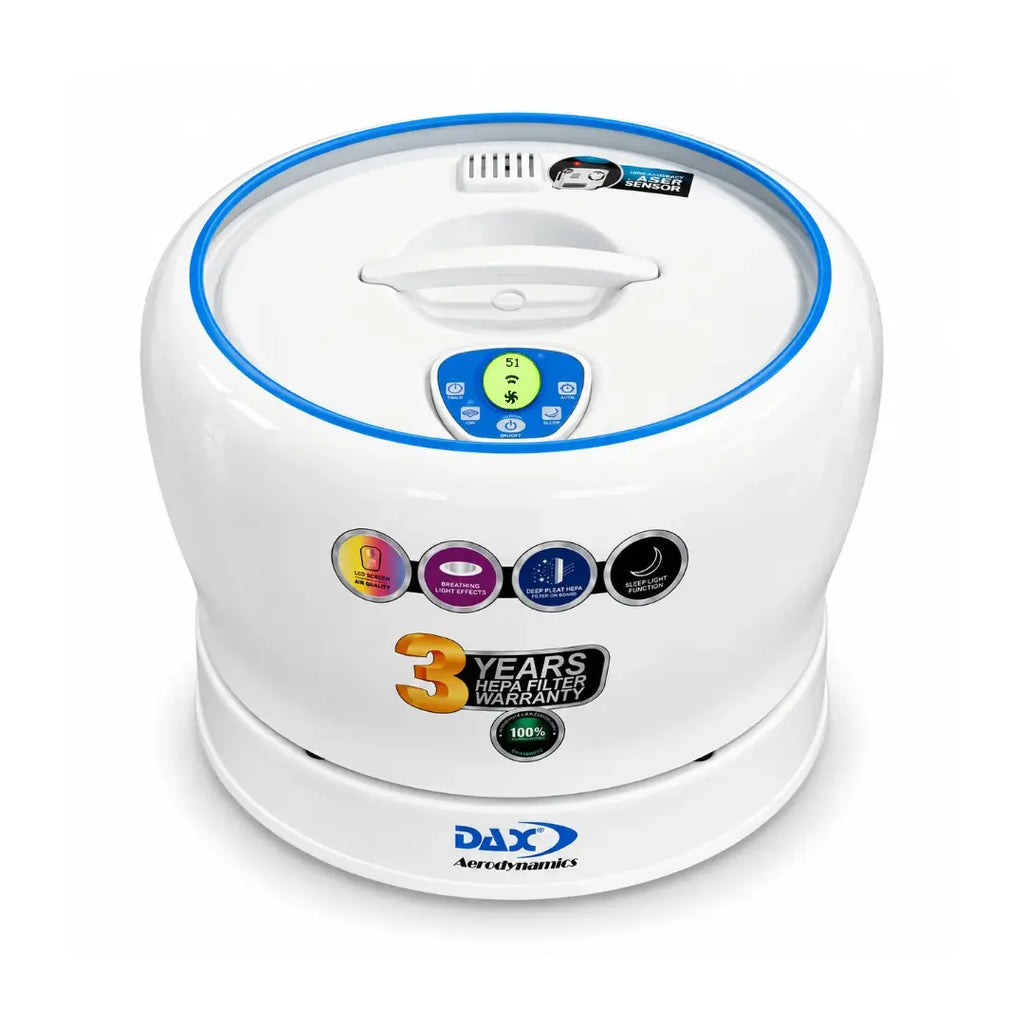

Control Panel:

This unit features an LCD display showing the air quality as well as PM 2.5 particle
count. Positioned on top, it includes buttons and LED indicators for power, fan
speeds (Low, Medium, High), mode selection (Auto, Sleep, Manual), timer
settings (1-8 hours), and filter status colour alerts. By pressing and holding
the auto function icon for 3 seconds, the breath light colour-coded air quality
becomes viewable from a distance.

Air Outlet:

Clean, purified air is released through this vent at the top/rear of the unit.

Filter Access Panel:

At the top, this panel can be easily opened to replace or clean the pre-filter.
The HEPA (white colour) can be cleaned. Do not attempt to clean or blow into
the HEPA filter as it will be destroyed. The activated carbon filter (black
colour) and the HEPA filter may be cleaned using a vacuum cleaner only. The
unit uses a multi-stage filter system: a pre-filter for dust, a True HEPA
filter for fine particles, and an activated carbon filter for odors and gases.

Unpack Carefully:

Remove all packaging
materials, plastic wrappings, and protective tapes from the unit and filters.

Choose Location:

Place the purifier in a central, open area with a minimum
of 20 cm clearance on all sides to ensure proper airflow. Avoid corners or
enclosed spaces.

Power Connection:

Plug the purifier into a properly grounded electrical
outlet that matches the device’s voltage rating (220V, 50Hz). Avoid using
extension cords if possible.

Start-Up:

Press the power button on the control panel to turn on
the device. The default fan speed is Low and the air quality sensor will
activate.

Auto Function:

For best results, run the
purifier on auto function. The unit will automatically adjust fan speed
continuously in accordance with the US AQI standard mentioned in the
introduction to this manual. Once air quality is achieved, the unit will
automatically turn off the blower.

Power On/Off:

Press the power button once to turn the device on. Press again to switch off.

Manual Mode Fan Speed Selection:

Use the fan speed button to cycle through Low, Medium, and High settings, depending on air quality and noise preference.

Auto Mode:

The purifier adjusts fan speed automatically based on detected air quality.

Sleep Mode:

Operates quietly with dimmed lights, suitable for night time use.

Timer Function:

Set the device to operate for a specific time period from 1 to 12 hours. After the time expires, the device will shut off automatically.
